No. F3-8M is a single-direction thrust ball bearing designed for axial loads only. If radial loads are present, use a deep groove ball bearing or other radial bearing separately.

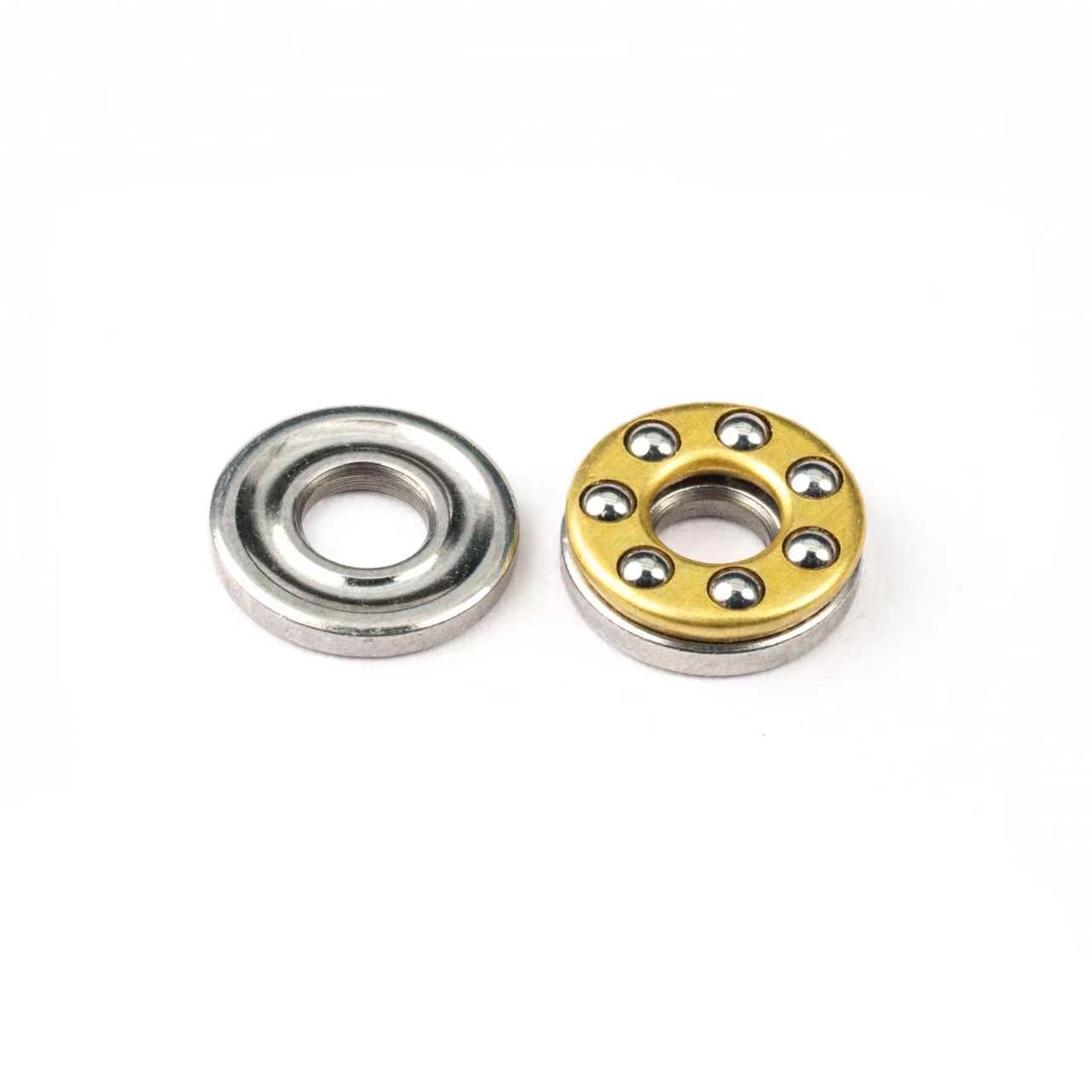

F3-8M Miniature Thrust Ball Bearing
F3-8M is a miniature single-direction thrust ball bearing. Common size 3x8x3.5mm with brass or steel cage. Separable design (shaft washer + housing washer + ball/cage assembly). Axial load only.
Specifications
| Model | F3-8M |
|---|---|
| Size | 3x8x3.5mm (bore x OD x height) |
| Shaft Washer ID | ~3.2mm |
| Housing Washer OD | ~7.8mm |
| Series | Miniature single-direction thrust ball bearing |
| Material | GCr15 bearing steel / stainless steel direction by product scope |
| Sealing | Open (no seal) |
| Cage Material | Brass / stainless steel |
| Structure | Separable (shaft washer, housing washer, ball/cage assembly) |
| Load Direction | Axial only — do not apply radial loads |
| Applications | 3D printers, small turntables, models, clutches, jacks, oven turntables |
Selection Notes
- F3-8M is a single-direction thrust bearing — supports axial load in one direction only. Never apply radial loads.
- Separable design: shaft washer, housing washer, and ball/cage assembly must be assembled in correct orientation.
- Default material direction is GCr15 bearing steel. Stainless steel direction can be discussed by product scope.
- Use within suitable thrust-bearing operating conditions and provide application details before ordering.
- If both radial and axial loads are present, consider angular contact ball bearings instead.
Before Ordering
F3-8M is extremely small (3mm bore). When ordering, please provide mounting space, shaft washer and housing washer fit, axial-use conditions, and whether a stainless steel direction is needed.
FAQ
"F" series designates thrust ball bearings. "M" typically indicates a caged design (with retainer). F3-8M is a three-piece separable miniature thrust bearing.
Stainless steel direction can be discussed when inquiring. Please provide material requirements and application conditions.
